Phone Case Laser Marking

A reliable phone-case marking process starts with the actual marking layer and case construction, then works through the required appearance, mark zone, product geometry, production mix and sample result. The final machine should be chosen from those test results—not from the words “plastic case,” “leather case” or laser power alone.

Request a Quote Discuss Sample Testing

Product / Construction Scope

What Types of Phone Cases Are Being Marked?

Typical workpieces include slim rigid shells, flexible protective cases, clear cases, rugged or hybrid cases, leather or folio-style cases, and magnetic-ring cases. Start by identifying the product form and the visible marking layer, then note any backing, flexibility or internal insert under the intended mark zone.

Rigid Shell

PC and Other Rigid Plastic Cases

Slim rigid shells commonly use PC or other rigid polymers. Note whether the marking face is flat, raised or recessed.

Flexible Case

TPU, Silicone and Soft-Touch Cases

Flexible protective cases may use TPU, silicone or other soft polymers. Note whether the case deforms during normal loading.

Leather Surface

Leather and PU Leather Cases

Leather, PU and folio-style cases may combine a visible skin, grain or coating with a backing layer. Identify the surface actually being marked.

Finished Surface

Painted, Printed and Coated Cases

Painted, printed and coated cases use an added finish over the structural shell. Record the visible finish and the substrate beneath it when known.

Optical Appearance

Clear or Translucent Cases

Clear or translucent cases should be identified separately because tint, transparency and backside visibility are part of the product appearance.

Hybrid Construction

Cases with Magnetic Rings, Inserts or Multiple Layers

Rugged, magnetic-ring and multi-layer cases can combine a rigid shell, soft bumper, liner, adhesive, metal ring or decorative insert. Map the parts below the intended mark zone.

Application Purpose

Why Are Phone Cases Laser Marked?

The reason for marking determines the artwork, inspection method and production workflow. Decorative personalization and production identification can use the same marking station, but they do not have the same acceptance criteria.

Personalization and Branding

Names, monograms, logos, illustrations and short-run graphics support customized orders and branded product presentation. Frequent artwork changes make file control and positioning part of the production requirement.

Product and Model Identification

Model references, edition information and approved product text help separate variants. The required content and location should follow the product specification rather than a generic layout.

Traceability and Order Control

Batch, date, order or serialized data can connect a marked case to a production or fulfillment record. When information changes from part to part, duplicate prevention and correct file/data selection become part of process control.

Marking Content

What Is Usually Marked on a Phone Case?

Separate the purpose of the mark from the actual content. A production test should use the real artwork size and the smallest features that will appear in normal orders.

Typical phone-case marking content and what the test should reproduce
Content type	Examples	What to reproduce in testing
Personalized text	Name, initials, monogram, short message	Smallest character, longest name, intended font and real placement zone.
Brand graphics	Logo, icon, illustration, decorative pattern	Fine lines, filled areas, edge definition and the largest normal graphic.
Product identification	Model, edition, internal part or product reference	Actual text size, orientation and required consistency across SKUs.
Variable data	Batch, date, order, serial, QR or Data Matrix when required	Data source, update rule, duplicate prevention and readable feature size.

Result Variables

What Determines the Phone Case Marking Result?

The product name does not determine the mark. The process window—the stable range of settings that repeatedly gives an acceptable result—is set by the layer hit by the laser, its formulation and finish, the geometry under that layer, the artwork and the production requirement.

1. Marking Layer

Molded resin, paint, soft-touch coating, printed decoration, leather finish and PU skin are different laser targets even when they are part of the same phone-case assembly.

2. Color and Formulation

Pigments, fillers, additives and supplier or batch variation can change absorption, contrast and the threshold between a clean mark and unwanted surface damage.

3. Surface Finish

Gloss, matte texture, grain, molded texture and coating consistency change how the mark looks and how easily edge defects or heat effects can be seen.

4. Geometry and Wall Construction

Curvature, wall thickness, camera islands, recesses, flexible walls and internal layers influence focus, fixture support and the allowable thermal window.

5. Artwork and Mark Area

Fine text, dense fills, large graphics and edge proximity can require different scan strategy and process margin. Test the hardest artwork, not only a large simple logo.

6. Production Requirement

Quantity, required production pace, SKU mix, color mix, changeover frequency, manual or automated loading and inspection requirements determine whether a sample result can be repeated efficiently.

Surface / construction conditions and the result to evaluate
Case condition	Typical result to screen	Main risk to check
Rigid molded plastic	High-contrast color change, controlled surface texture change or shallow mark, depending on formulation and target appearance.	Weak contrast, glossy halo, melting, rough edge or color-to-color variation.
TPU / silicone / flexible surface	Readable contrast with limited distortion and a controlled tactile/cosmetic change.	Melting, tacky or glossy areas, part deformation and positioning shift during loading.
Leather / PU leather	Tonal contrast, darkening, controlled surface engraving or texture change that matches the cosmetic requirement.	Burning, excessive edge darkening, odor/residue, coating damage or uneven response across grain.
Painted / coated rigid case	Controlled top-layer color change or selective removal while keeping the substrate and adjacent finish inside the cosmetic limit.	Uneven breakthrough, exposed substrate damage, ragged edge or coating delamination.
Clear / translucent case	Visible haze, frosting, whitening or subtle contrast where acceptable under agreed lighting.	Low visibility, unwanted clouding, backside appearance change or stress/thermal damage.
Hybrid or insert-equipped case	Modify only the intended visible layer while protecting the layers and components below it.	Heat transfer to adhesive/lining/insert, local distortion or inconsistent response over changing construction.

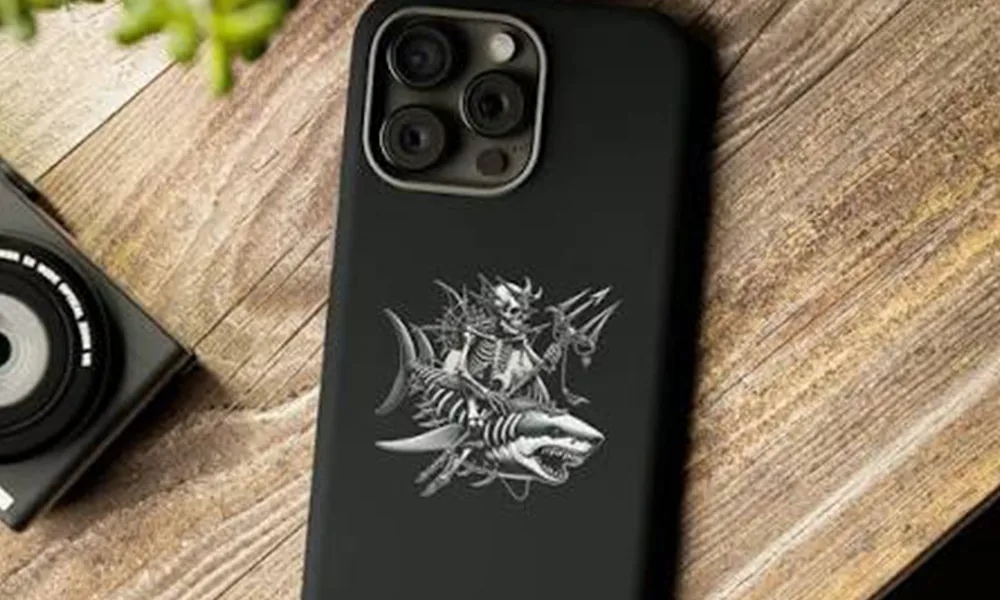

Laser-marked black rubberized phone case with a detailed decorative graphic — Rubberized phone-case marking reference showing a detailed light graphic on a dark coated surface. Use it to judge coating response, fine-detail clarity and surrounding cosmetic change; the actual case coating, color and construction still need sample qualification.

Target Result

What Should an Acceptable Phone Case Mark Achieve?

Define the required result before choosing the laser. “A visible logo” is not enough if the finished case also has to meet cosmetic, durability and repeatability requirements.

AppearanceAgreed contrast, tone, texture or layer-removal effect on the finished surface.

Fine DetailSmall text, thin lines and logo edges remain clear at the real artwork size.

Cosmetic ProtectionNo unacceptable melt halo, burn, haze, discoloration, coating damage or change outside the approved mark zone.

Position RepeatabilityThe mark stays inside the drawing-approved zone across repeated loading, SKU changes and flexible-part variation.

Handling / Wear PerformanceThe mark remains acceptable after the rubbing, cleaning or other exposure actually specified for the product.

Production RepeatabilityThe accepted appearance and position can be repeated within the required cycle and changeover pattern.

Laser-personalized rigid phone-cover sample with decorative artwork and camera opening — Rigid phone-cover personalization reference showing a large decorative graphic, fine detail and the camera-opening relationship. It is useful for reviewing artwork placement and cosmetic edge quality on this photographed construction; other materials, colors and finishes still require sample testing.

What This Sample Shows

Use the Actual Case to Approve the Final Effect

A sample photo can show an achievable appearance on that photographed workpiece, but it should not be generalized across different phone-case materials, coatings or colors.

For a production recommendation, the useful evidence is a marked sample from the customer’s actual construction, together with the mark zone, artwork size, surface condition and acceptance result.

For mixed case families: qualify at least the variants most likely to change the process window—different surface layer, color, thickness, texture, curvature or internal construction.

Geometry & Loading

How Do Camera Islands, Magnetic Inserts, Thin Walls and Loading Affect Marking?

Phone cases are rarely one uninterrupted flat sheet. Keep-out zones, height changes, flexible walls and hidden layers can affect focus, cosmetic risk and repeatable positioning.

Raised Camera Islands

Record the height difference between the main back surface and the camera lip. A mark close to a raised feature can lose focus or create clearance problems even when the center of the case marks well.

MagSafe Rings and Other Inserts

Map magnetic rings, metal plates, adhesive and decorative inserts below the surface. They may change local construction and should be included when defining thermal limits and keep-out zones.

Thin-Wall Areas

Thin sections need extra attention for local melting, distortion, backside appearance and heat transfer into lining, adhesive or another layer.

Cosmetic Keep-Out Zones

Protect camera openings, glossy decorative zones, seams, transparent windows, edge radii, logos that must remain untouched and any surface controlled by the product drawing.

Flexible-Case Loading

A soft case can stretch, bow or shift when placed by hand. A nest should support the part without deforming the marking surface or moving the fixture datum (the locating reference used to position the artwork).

Locating Reference, Focus and Clearance

Define what feature locates the case, where the focus reference is taken and how much Z/workstation clearance the fixture needs across the complete SKU range.

First-Test Laser Route

Which Laser Route Should Be Tested First?

This is a screening matrix, not a final machine-selection table. Start with the actual marking layer and required effect, then compare the route that is most likely to meet the cosmetic and thermal limit on the real case.

Conditional first-test directions for phone-case marking
Workpiece condition	First route to evaluate	What the sample must prove
Heat-sensitive molded plastic or fine cosmetic artwork	UV is often worth an early comparison when minimizing visible thermal change is important.	Contrast or surface change, fine-edge quality, distortion and repeatability across colors/batches.
Plastic known to respond to near-infrared marking or laser additives	Compare fiber / MOPA fiber with UV according to the target appearance and thermal margin.	Required contrast without unacceptable melting, gloss change or surrounding heat effect.
Leather or many PU / organic-surface constructions	CO₂ is a practical starting evaluation; compare another source only when the construction or cosmetic target justifies it.	Tonal change or engraving appearance, edge quality, residue/odor control and effect on the finish/backing.
Painted or coated rigid shell	Choose the first route from the intended mechanism: color change, top-layer modification or controlled removal. Fiber/MOPA, UV or CO₂ may enter the comparison depending on the coating and substrate.	Modify only the intended layer, keep the boundary clean and protect the substrate and adjacent finish.
Rigid metal shell or metal decorative area	Fiber / MOPA fiber is normally the first family to screen for direct metal marking or controlled surface response.	Appearance, edge quality, heat effect, coating/anodizing condition and cosmetic acceptance.
Unknown, clear, multilayer or insert-equipped construction	Do not choose from the product name alone. Run a small source comparison on the real workpiece after identifying the visible layer and thermal/depth limit.	Which route creates the required effect with the widest usable process margin and least collateral change.

Important: power alone is not a selection rule. Wavelength/source family, pulse behavior, spot/field choice, scan strategy, geometry and the real material response all influence the usable window.

Failure Diagnosis

What Can Go Wrong During Phone Case Laser Marking?

Do not treat every poor result as “not enough power.” The visible failure usually points to a smaller set of material, focus, geometry, fixture or process-window causes that can be checked systematically.

Phone-case marking failure modes and the next check
Observed failure	Likely causes to investigate	Check before changing the machine
Weak or inconsistent contrast	Resin/coating formulation, pigment, supplier or batch variation, unsuitable source or process window.	Compare known-good and failed variants with the same artwork and fixture; record material/color/batch.
Melted edge or glossy halo	Excess thermal input, overlapping energy, slow scan, unsuitable pulse/source or poor focus.	Reduce the thermal load systematically and compare another route if the acceptable window remains too narrow.
Uneven mark across one case	Curvature, height change, texture variation, inconsistent focus or unsupported flexible surface.	Measure/inspect the mark-plane variation and repeat with controlled support and focus reference.
Logo position shifts between parts	Loose nest, flexible case deformation, inconsistent datum, SKU mismatch or loading variation.	Check fixture repeatability before changing laser parameters; repeat the same artwork on multiple loaded parts.
Coating breaks through unevenly	Coating thickness variation, aggressive removal, underlying surface variation or wrong mechanism.	Inspect the transition edge and substrate; test a smaller process matrix rather than simply adding passes.
Backside / insert area changes	Thin wall, adhesive, lining or internal insert below the mark; excessive local heat or depth.	Section/map the construction, define a stop limit and verify the backside after the same exposure used in production.
One color works and another fails	Pigment/additive response or different supplier/formulation.	Treat color/formulation as a separate sample family; do not transfer settings from appearance alone.
Fine text looks worse than the test logo	Artwork feature size, field/spot choice, scan strategy, focus or surface texture.	Retest with the smallest production text/line width instead of approving from a large graphic.

Production Workflow

What Must the Production Phone Case Marking Workflow Include?

In high-mix personalization, the production risk is not only the laser exposure. Wrong SKU, wrong artwork, wrong customer data or inconsistent loading can create a failed order even when the mark itself is technically clean.

LoadConfirm the correct model, color, construction and approved marking face.
Job / DataLoad the correct artwork and variable data, then confirm the active job before marking.
PositionSeat the case against the approved locating reference or positioning method without deforming the surface.
Focus / ZoneConfirm the focus reference, camera-island clearance, keep-out zones and correct marking field for that SKU.
MarkRun the qualified process window for the defined surface and variant.
InspectCheck content, position, cosmetic appearance and any required machine-readable code before release.
Reject / ReleaseApply the defined decision for wrong data, shifted marks, cosmetic defects or failed codes instead of relying on ad hoc judgment.
ChangeoverSwitch model, color, artwork or recipe through a controlled changeover so the accepted process is preserved between short runs.

Sample Qualification

How Should Representative Phone Case Samples Be Qualified?

Qualification should reproduce the hard parts of the real order mix. Approving one convenient case color with one large logo is not enough when production includes different surfaces, thin walls, small text and frequent changeovers.

Build the Sample MatrixInclude the most difficult colors, coatings, textures, thicknesses, curves and constructions—not just the easiest sample.

Use Real ArtworkTest the smallest text, thinnest line, largest filled area and the real mark location.

Compare First-Test RoutesHold the fixture/artwork constant while comparing the candidate source/process directions on the same construction.

Choose a Process WindowPrefer a repeatable operating window, not one isolated setting that barely produces an acceptable photo.

Repeat on Multiple PartsCheck part-to-part variation, reloading and representative SKU/color changes.

Inspect the Whole CaseReview contrast, edge quality, position, distortion, surrounding surface and backside/internal effects.

Run Required Exposure TestsApply the actual rubbing, cleaning, handling or other durability check specified for the product, then inspect again.

Record the Accepted ResultKeep the approved sample, artwork, process direction, fixture reference and acceptance notes for production transfer.

Representative sample rule: the sample set should include the variant most likely to fail—such as the thinnest wall, strongest curvature, lowest-contrast color, most appearance-sensitive finish or most difficult artwork—not only an average case.

Test Result → Machine Configuration

How Do Sample-Test Results Define the Final Machine Configuration?

The final configuration should be a direct response to what the sample test and production workflow proved. A clean mark is only one input; field size, focus, fixture, software, clearance, extraction and loading still have to match the real job.

Laser & Optics

Accepted source familyWhen one source family gives acceptable contrast with the best cosmetic and thermal margin, use that tested family as the process baseline and define power/pulse options from the validated process window rather than a generic wattage rule.

Artwork size and detailFor large personalization graphics or multiple mark sizes, choose a field lens / marking field that covers the required area while preserving the detail needed by the smallest artwork.

Height variationFor a camera island, recessed panel or meaningful height change, confirm Z travel, focus strategy and whether a standard flat-field setup is enough; use 3D/dynamic focus only when the actual geometry requires it.

Fixture & Positioning

Flexible-case supportIf the case shifts or bows during loading, make a dedicated nest/fixture part of the configuration and validate that the support does not deform the marking surface.

Position tolerance and SKU controlFor tight position tolerance or many similar SKUs, evaluate an error-proof fixture and/or vision positioning when it materially reduces wrong placement or SKU errors.

Data & Production

Variable artwork and order dataFor frequent names, graphics, serials or order-driven data, include software templates, variable-data control, job selection and the required data connection in the machine scope.

Production paceFor high volume or a short cycle requirement, use the tested mark time plus load/unload and inspection time to decide manual, semi-automatic or automated handling.

Mixed qualified constructionsWhen multiple case constructions need different qualified windows, define changeover recipes, fixture changes and operator controls so the machine can switch variants without mixing process settings.

Workstation & Environment

Residue, smoke or odorSize extraction around the accepted process and workstation; do not treat fume handling as an afterthought.

Clearance and accessFor a tall nest, raised product features or a wide SKU height range, confirm workstation clearance, Z-axis travel and operator access before freezing the enclosure/worktable configuration.

Configuration decision: laser source + process window + marking field + focus/Z strategy + fixture + positioning method + software/data + extraction + safety/workstation + loading/automation level should all trace back to the qualified phone-case samples and production requirement.

Discuss Your Phone Case Marking Requirement

Send the actual case construction, surface/finish, colors, artwork, mark zone, dimensions, internal inserts, model mix, batch pattern and acceptance criteria. Zhuorui Laser can use representative samples to compare the practical laser route and define the machine configuration from the test result.
